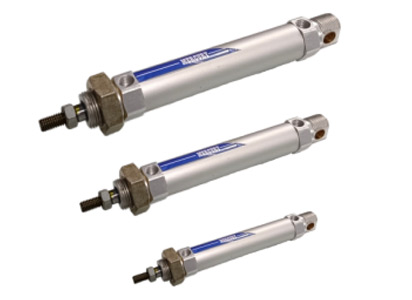

We are Manufacturer, Supplier, Exporter of Miniature Cylinders, Mini Pneumatic Cylinder, Miniature Pneumatic Cylinders, Small Hydraulic Cylinders For Robotics, Small Diameter Hydraulic Cylinder. Our setup is situated in Aurangabad, Maharashtra, India.
| Salient Features | |
|---|---|
| • Low friction, Self-adjusting 'T' ring seal for smooth, jerk-free motion | |
| • Honed & Hard Anodized Aluminium barrel | |
| • Hard chrome plated piston rod | |
| • Stroke length up to 1000mm | |
| • Available in Single & Double acting type | |
| • Available in Non-Magnetic & Magnetic type | |
| Operating Conditions | |
| Media | Air (filtered 40μ & lubricated) |
| Temperature Range | +5°C to +50°C |
| Pressure Range | 0.5 to 10 bar |
| Leakage | Bubble Tight |
| Mechanical Characteristics | |
| Barrel | Ø16, Ø20 & Ø25 - Aluminium alloy |
| Piston Rod | Carbon steel IS 5517 - C35 |
| End Caps | Aluminium alloy IS 63400 (6063T6) |
| Seals | Nitrile rubber, polyurethane (Viton for high temp. on request) |
