We are Manufacturer, Supplier, Exporter of Special Valves For Pet Moulding. Our setup is situated in Aurangabad, Maharashtra, India.
|
MODEL No.
|
DESCRIPTION
|
PORT
SIZE (BSP) |
SYMBOL
|
SEAL KIT
No |

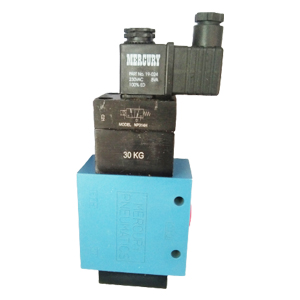

| NP314H* | 3/2 (3 WAY) HIGH PRESSURE BLOW SOLENOID VALVE | 1/2" |  |
SKN P31 4H |
ADD VOLTAGE & CONNECTOR SUFFIX WHILE ORDERING
|
MODEL No.
|
DESCRIPTION
|
PORT SIZE (BSP)
|
SYMBOL
|
SEAL KIT
No. |
|

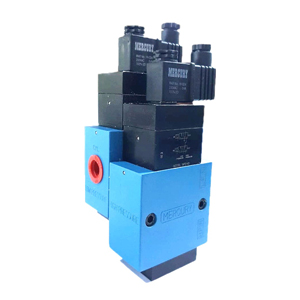

| NP314D* | 3/2 (3 WAY) DUAL PRESSURE BLOW SOLENOID VALVE | L.P | H.P |  |
SKNP314D |
| 1/2" | 1/2" | ||||
ADD VOLTAGE & CONNECTOR SUFFIX WHILE ORDERING
|
MODEL No.
|
DESCRIPTION
|
PORT
SIZE (BSP) |
SYMBOL
|
SEAL KIT
No. |
|

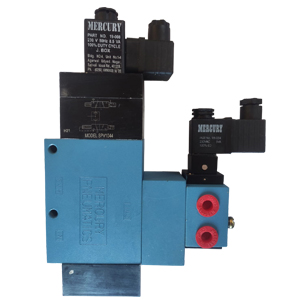

| SPV1 047* | 3/2 (3 WAY) DUAL PRESSURE BLOW SOLENOID VALVE |
L.P | H.P |  |
SKSPV1 047 |
| 1/4" | 1/2" | ||||
| SPV1 044* | SKSPV1044 | ||||
| 1/4" | 3/4" | ||||
ADD VOLTAGE & CONNECTOR SUFFIX WHILE ORDERING
|
MODEL No.
|
DESCRIPTION
|
PORT
SIZE (BSP) |
ORIFICE
(mm) |
SYMBOL
|
SEAL KIT
No. |
||

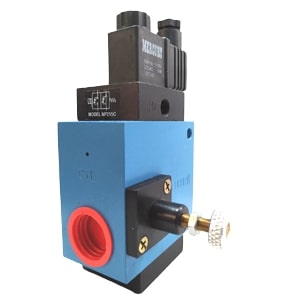

| NP215C* | 2/2 (2 WAY) N.O. CUSHION SOLENOID VALVE | 3/4" | 020.00 |  |
SKNP215C | ||
| NP216C* | 1" | 024.50 | SKNP21 6C | ||||
ADD VOLTAGE & CONNECTOR SUFFIX WHILE ORDERING
|
MODEL No.
|
DESCRIPTION
|
PORT
SIZE (BSP) |
SYMBOL
|
SEAL KIT
No. |

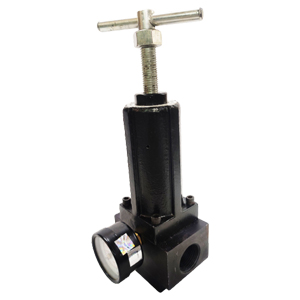

| RH4 | HIGH PRESSURE REGULATOR WITH PRESSURE GAUGE | 1/2" |  |
SKRH4 |
| RH6 | HIGH PRESSURE REGULATOR WITH PRESSURE GAUGE | 1" |  |
SKRH 6 |

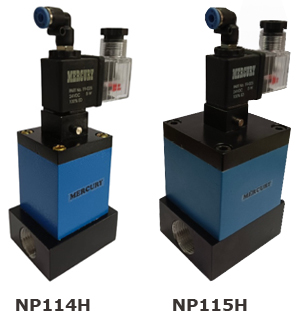

2/2 High Pressure Valves
The New, High Performance, Long Lasting High Pressure Valve for Semi & Fully Automatic "Pet" Blow Moulding Machines

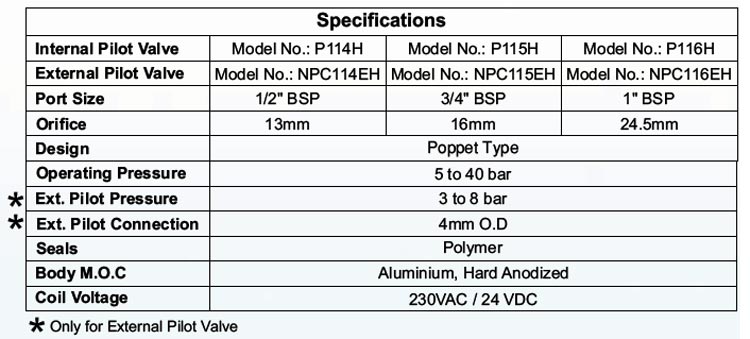

> Salient Features| Specifications | NPC114EH | NPC115EH | NPC116EH |
|---|---|---|---|
| Port Size | 1/2" BSP | 3/4" BSP | 1" BSP |
| Orifice | 13mm | 16mm | 24.5mm |
| Design | Poppet Type, External Pilot Operated | ||
| Operating Pressure | 5 to 40 bar | ||
| Ext. Pilot Pressure | 3 to 8 bar | ||
| Ext. Pilot Connection | 4mm O.D | ||
| Seals | Polymer | ||
| Body M.O.C | Aluminium, Hard Anodized | ||
| Coil Voltage | 230VAC / 24 VDC | ||

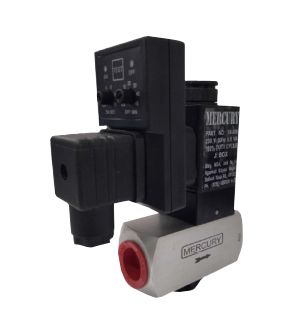

Model : ADV(1/4") For Air Line Filters, Refrigerated Dryers & Air Dryers

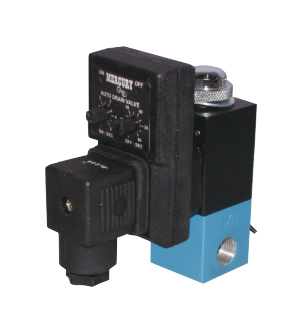

Automatic Drain Valve
For removal of condensed water from compressed air systems
| Technical Specifications | |
| Valve Housing | Anodised Aluminium |
| Inner Parts | Stainless Steel |
| Seals | Nitrile Rubber |
| Orifice | 3mm |
| Pressure | 0 to 12 kgf/cm2 |
| Mounting | Any Direction |
| Coil & Timer | Epoxy Moulded Class B |
| Voltage | 230 VAC ± 20% |
| Ambient Temperature | -5oC to 50 oC |
| Duty | 100% |
| Off Time | Adjustable 0.5 to 45 min |
| On Time | Adjustable 0.5 to 10 sec |
Model ADV04 (1/2") For Small Compressors, Air Receivers & AIr Dryers
| Technical Specifications | |
| Valve Housing | Anodised Aluminium |
| Inner Parts | Stainless Steel / Aluminium |
| Seals | Nitrile Rubber |
| Orifice | 3mm |
| Pressure | Main Line 3 to 16 Bars |
| Mounting | Any Direction |
| Coil & Timer | Epoxy Moulded Class B |
| Voltage | 230 VAC ± 20% |
| Ambient Temperature | -5oC to 50 oC |
| Duty | 100% |
| Off Time | Adjustable 0.5 to 45 min |
| On Time | Adjustable 0.5 to 10 sec |

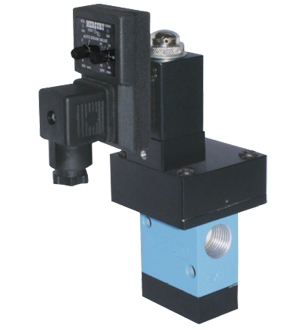

Model: ADVH (1/2") For Large Receivers, Air Dryers, Moisture Separators & After Coolers
| Technical Specifications | |
| Valve Housing | Anodised Aluminium |
| Inner Parts | Stainless Steel / Aluminium |
| Seals | Nitrile Rubber |
| Orifice | 13mm |
| Pressure | Main Line 2 to 20 Bars, Pilot Line 3 to 8 Bars |
| Mounting | Any Direction |
| Coil & Timer | Epoxy Moulded Class B |
| Voltage | 230 VAC ± 20% |
| Ambient Temperature | -5oC to 50 oC |
| Duty | 100% |
| Off Time | Adjustable 0.5 to 45 min |
| On Time | Adjustable 0.5 to 10 sec |
DP215-1RS
DP215-2RS
| Mechanical Characteristic | |
| Body | Aluminum |
| Orifice | LP-12mm, H.P-16mm, EXH-24mm |
| Ports | Refer technical data |
| Seals | Polymer |
| Design | Poppet type, external pilot operated |
| Weight | DP215-1/2 :-3.60 kg, DP215-1R/2R :-4.60kg, DP215-1RS/2RS :-6.60kg |
DP215-1R
DP215-2R
| Operating Conditions | |
| Media | Air (filtered 40μ) |
| Temperature Range | +5 to +50°C |
| Pressure Range | Pilot : 6 to 8 bar , LP:- 2 TO 20 bar , HP:- 3 To 40 bar |
| Leakage | Bubble Tight |
DP215-1 (EXH NO)
DP215-2 (EXC NC)
| Electrical Conditions | |
| Coil Voltage | 24 VDC |
| Power | 2.3W |
| Duty Cycle | Continuous |
| Protection | IP 65 (as per DIN 40 050) |
| Connector | Illuminated,15mm formc (9.4mm) |
