We are Manufacturer, Supplier, Exporter of FRL Units(Air Preparation Units).
Our setup is situated in Aurangabad, Maharashtra, India.
An FRL unit is comprised of a filter (F),
regulator (R), and a lubricator (L). They are frequently utilized as one unit to guarantee clean air in a
pneumatic framework however can likewise be utilized separately.

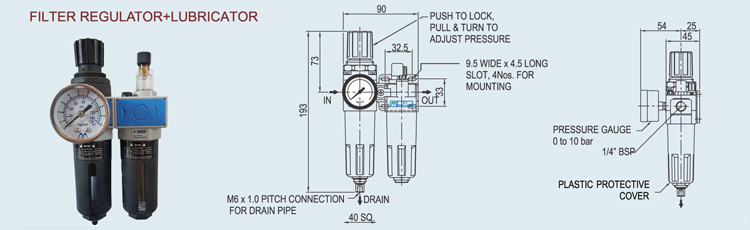

Series 'S' 1/4" (02) FRL
|
Model
|
SFR+L02
|
| Port | 1/4" BSP |
| Pressure Ranee | 0.5-8.5 kgf/sq.cm |
| Temperature | +5°to 50 °C |
| Filtering Density | 25 µm |
| Fluid | Air |
| Max. Flow Rate | 500 lit/min (NLPM) |
| Recommended Oil | Hydrol 32/Encol 32/ Servo System 32 |
| Pressure Gauge Port | 1/8" BSP |
| Protective Cover | Plastic |
| Weight | 0.56 kg |
|

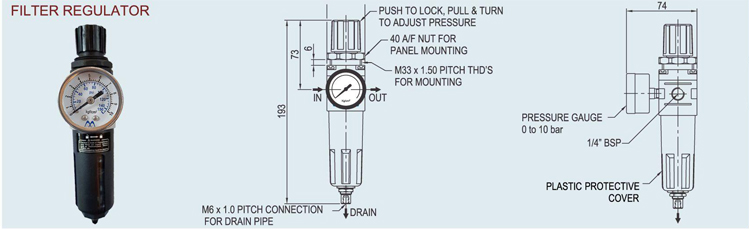

Model
|
SFR 02
|
| Port | 1/4" BSP |
| Pressure Range | 0.5-8.5 kgf/sq.cm |
| Temperature | +50 to 50 ° C |
| Filtering Density | 25µm |
| Fluid | Air |
| Max. Flow Rate | 500 lit/min (NLPM) |
| Pressure Gauge Port | 1/8" BSP |
| Protective Cover | Plastic |
| Weight | 0.35 kg |
|

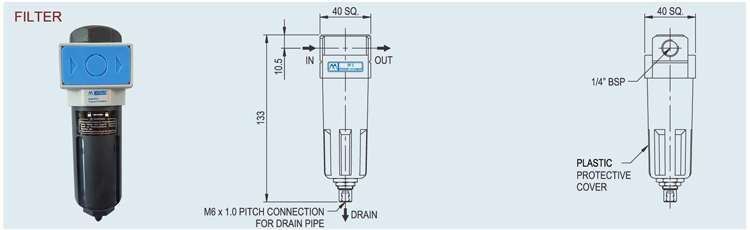

Model
|
SF 02
|
| Port | 1/4" BSP |
| Pressure Range | 0.5-8.5 kgf/sq.cm |
| Temperature | +5°to 50 °C |
| Filtering Density | 25 µm |
| Fluid | Air |
| Max. Flow Rate | 550 lit/min (NLPM) |
| Protective Cover | Plastic |
| Weight | 0.17 kg |
|

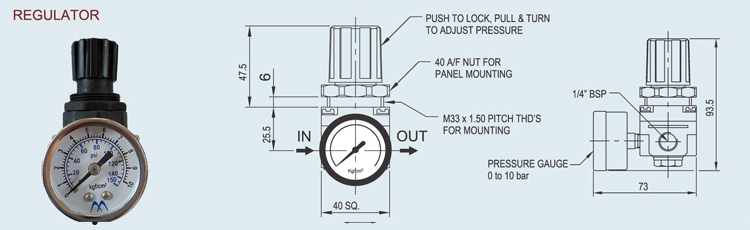

Model
|
SR 02
|
| Port | 1/4" BSP |
| Pressure Range | 0.5-8.5 kgf/sq.cm |
| Temperature | +5°to 50 °C |
| Fluid | Air |
| Pressure Guage Port | 1/8" BSP |
| Max. Flow Rate | 550 lit/min (NLPM) |
| Weight | 0.23 kg |
|

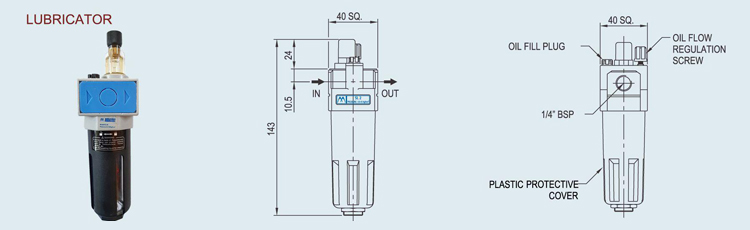

Model
|
SL 02
|
| Port | 1/4" BSP |
| Pressure Range | 0.5-8.5 kgf/sq.cm |
| Temperature | 05°to 50 °C |
| Fluid | Air |
| Lubricant | Hydrol 32/Encol 32/ Servo System 32 |
| Max. Flow Rate | 750 lit/min (NLPM) |
| Min. Oil Drop Flow | 15 lit/min |
| Protective Cover | Plastic |
| Weight | 0.16 kg |
Series 'M' 1/2" (04) FRL
|

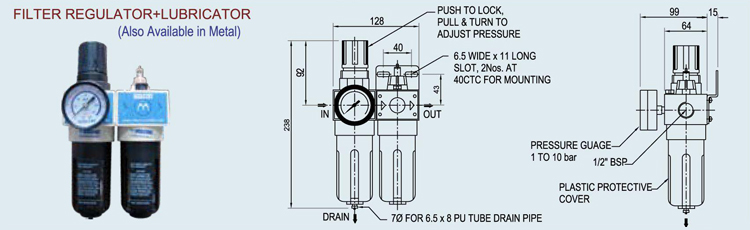

Model
|
MFR+L04
|
| Port | 1/2" BSP |
| Pressure Range | 0.5-9.9 kgf/sq.cm |
| Temprature | +5 to 60°C |
| Filtering Density | 40µm |
| Fluid | Air |
| Max. Flow Rate | 2750 lit/min (NLPM) |
| Recommended Oil | Hydrol 32/Encol 32/ Servo S stem 32 |
| Pressure Gauge Port | 1/4" BSP |
| Bowl Material | Polycarbonate |
| Protective Cover | Plastic |
| Weight | 1.20 kg |
|

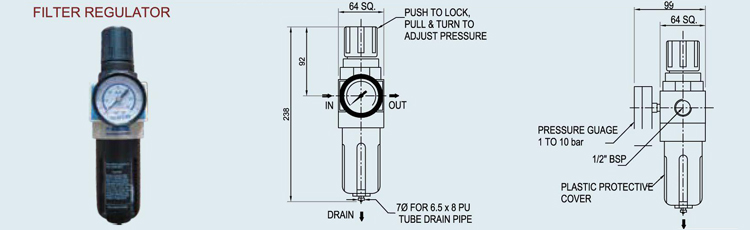

Model
|
MFR04
|
| Port | 1/2" BSP |
| Pressure Range | 0.5-9.9 kgf/sq.cm |
| Temprature | +5 to 60°C |
| Filtering Density | 40 µm |
| Fluid | Air |
| Max. Flow Rate | 2750 lit/min (NLPM) |
| Pressure Gauge Port | 1/4" BSP |
| Bowl Material | Polycarbonate |
| Protective Cover | Plastic |
| Weight | 0.70 kg |
|

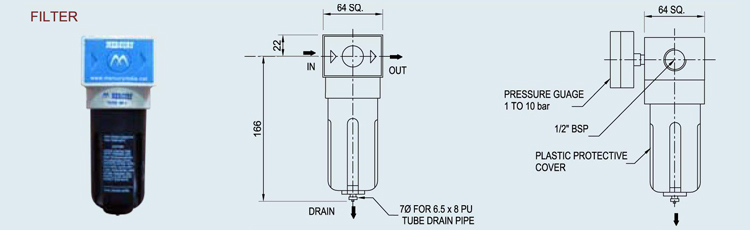

Model
|
MF 04
|
| Port | 1/2" BSP |
| Pressure Range | 0.5-9.9 kgf/sq.cm |
| Temperature | +5 to 60°C |
| Filtering Density | 40 µm |
| Fluid | Air |
| Max. Flow Rate | 3030 lit/min (NLPM) |
| Bowl Material | Polycarbonate |
| Protective Cover | Plastic |
| Weight | 0.45 kg |
|

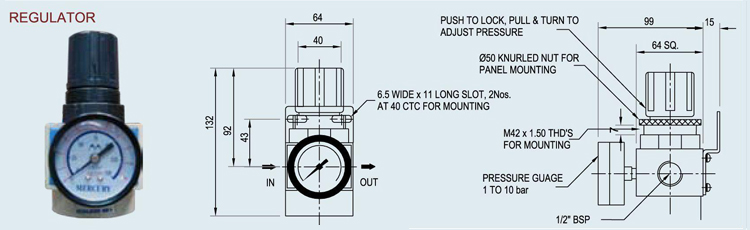

Model |
MR 04 |
|
Port |
1/2" BSP |
|
Pressure Range |
0.5-9.9 kgf/sq.cm |
|
Temperature |
+5 to 60°C |
|
Fluid |
Air |
|
Pressure Gauge Port |
1/4" BSP |
|
Protective Cover |
Plastic |
|
Weight |
0.45 kg |
|
Max. Flow Rate
|
2750 lit/min |
|
Weight |
0.62 kg. |
|

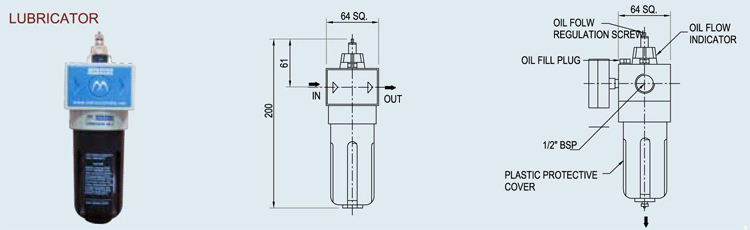

Model
|
ML 04
|
| Port | 1/2" BSP |
| Pressure Range | 0.5-9.9 kgf/sq.cm |
| Temperature | +5 to 60°0 |
| Filtering Density | 5 µm |
| Fluid | Air |
| Lubricant | Hydrol 32/Encol 32/ Servo System 32 |
| Max. Flow Rate | 4310 lit/min NLPM |
| Min. Oil Dro. Flow | 15 lit/min |
| Bowl Material | Polycarbonate |
| Protective Cover | Plastic |
| Weight | 0.45 kg |

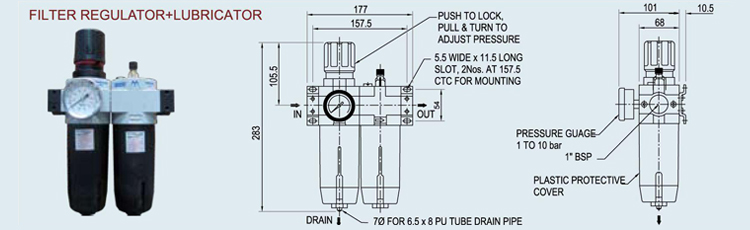

Series 'L' 3/4" (06) & 1" (08) FRL
|
Model
|
MFR+L06
|
MFR+L08
|
| Port | 3/4" BSP | 1"BSP |
| Pressure Range | 0.5-8.5 kgf/sq.cm | |
| Temprature | 05 to 60°0 | |
| Filtering Density | 5 µm & 40µm | |
| Fluid | Air | |
| Max. Flow Rate | 7900 lit/min (NLPM) | 8100 lit/min. (NLPM) |
| Recommended Oil | Hydrol 32/Encol 32/ Servo S stem 32 |
|
| Pressure Gauge Port | 1/4" NPT | |
| Bowl Material | Polycarbonate | |
| Protective Cover | Plastic | |
| Weight | 1.98 kg | 1.95 kg |
|

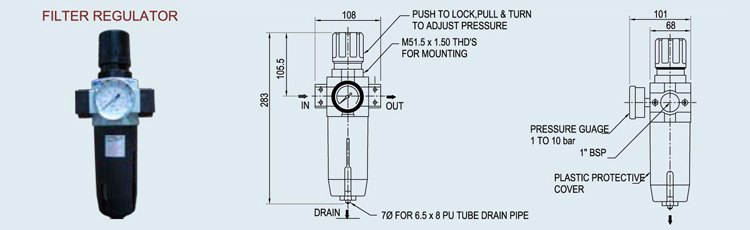

Model
|
MFR 06
|
MFR 08
|
| Port | 3/4" BSP | 1"BSP |
| Pressure Range | 0.5-8.5 kgf/sq.cm | |
| Temperature | 05 to 60°C | |
| Filtering Density | 5 µm & 40 µm | |
| Fluid | Air | |
| Max. Flow Rate | 7900 lit/min (NLPM) | 8100 lit/min. (NLPM) |
| Pressure Gauge Port | 1/4" NPT | |
| Bowl Material | Polycarbonate | |
| Protective Cover | Plastic | |
| Weight | 1.30 kg | 1.27 kg |
|

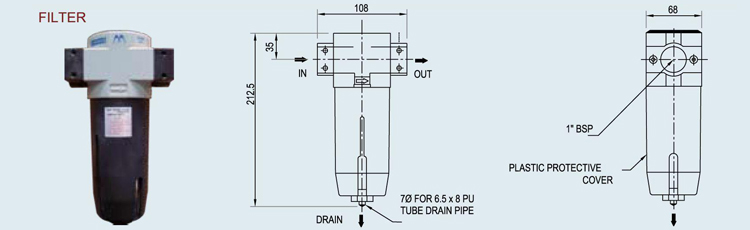

Model
|
MF 06
|
MF 08
|
| Port | 3/4" BSP | 1"BSP |
| Pressure Range | 0.5-8.5 kgf/sq.cm | |
| Temperature | 05 to 60°C | |
| Filtering Density | 5 µm & 40µm | |
| Fluid | Air | |
| Max. Flow Rate | 8000 lit/min (NLPM) | 8400 lit/min. (NLPM) |
| Bowl Material | Polycarbonate | |
| Protective Cover | Plastic | |
| Weight | 0.80 kg | 0.78 kg |
|

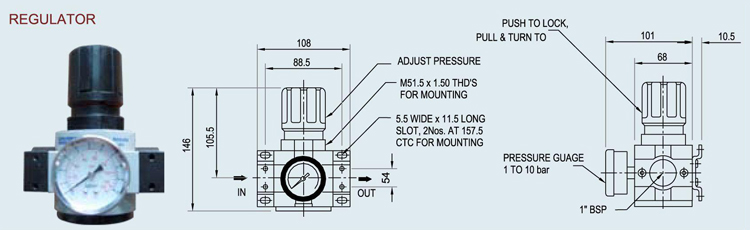

Model
|
MR 06
|
MR 08
|
| Port | 3/4" BSP | 1"BSP |
| Pressure Range | 0.5-8.5 kgf/sq.cm | |
| Temperature | 05 to 60°C | |
| Fluid | Air | |
| Pressure Gauge Port | 1/4" NPT | |
| Max. Flow Rate | 7900 lit/min (NLPM) | 8100 lit/min. (NLPM) |
| Weight | 0.80 kg | 0.78 kg |
|

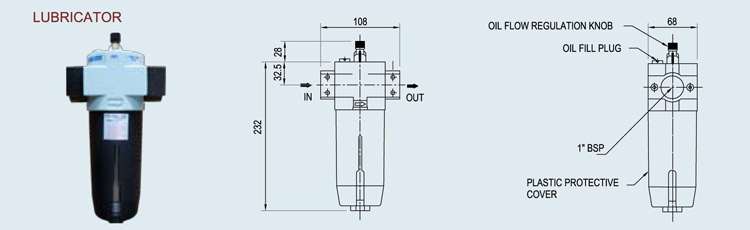

Model
|
ML 06
|
ML 08
|
| Port | 3/4" BSP | 1"BSP |
| Pressure Range | 0.5-8.5 kgf/sq.cm | |
| Temprature | 05 to 60°0 | |
| Filtering Density | 5 µm & 40 µm | |
| Fluid | Air | |
| Lubricant | Hydrol 32/Encol 32/ Servo System 32 |
|
| Max. Flow Rate | 8200 lit/min NLPM | 8800 lit/min. NLPM |
| Min. Oil Drop Flow | 15 lit/min | |
| Bowl Material | Polycarbonate | |
| Protective Cover | Plastic | |
| Weight | 0.84 kg | 0.82 kg |
